CX-DJ17

Vehicle Mounted Dab Antenna

Frequency Range: 174 – 240 MHz (DAB) / 87 – 108 MHz (FM) — dual-band coverage
Gain: ~ 2.5–3.5 dBi (DAB) / ~ 1.5–2.5 dBi (FM)
Impedance: 50 Ω
VSWR: ≤ 2.0
Polarization: Vertical (for vehicle rooftop mounting)
Connector Type: Standard automotive antenna base (metal threaded mount)
Mount Type: External vehicle-roof or trunk mount (threaded socket)
Material: Stainless steel whip with corrosion-resistant metal base
Cable: RG-174 or vehicle-standard coaxial cable with boot-sealed base
Operating Temperature: -40 °C to +85 °C
Water Resistance: Weather-sealed base for outdoor exposure
Applications: Car/boat/RV DAB & FM radio, mobile entertainment systems, aftermarket radio upgrades.

Enquire Now

Download Specification

Descritption CX-DJ17

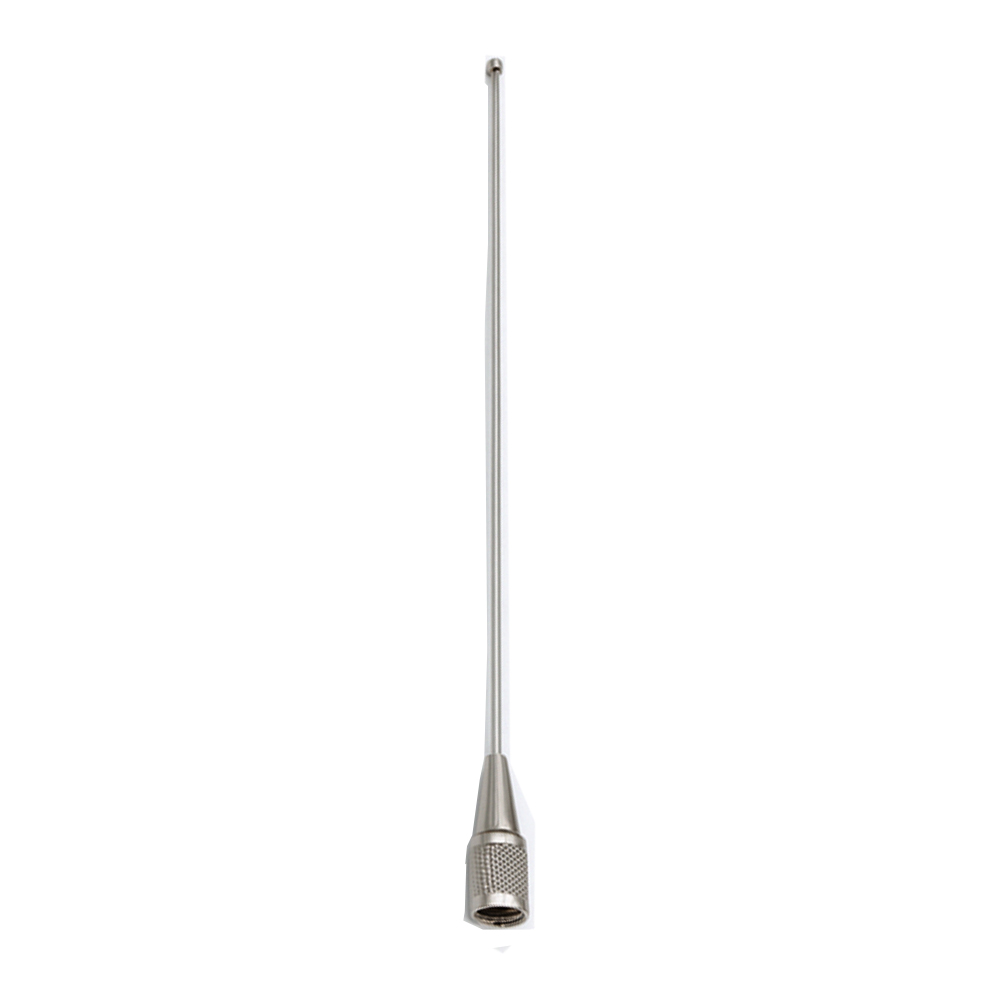

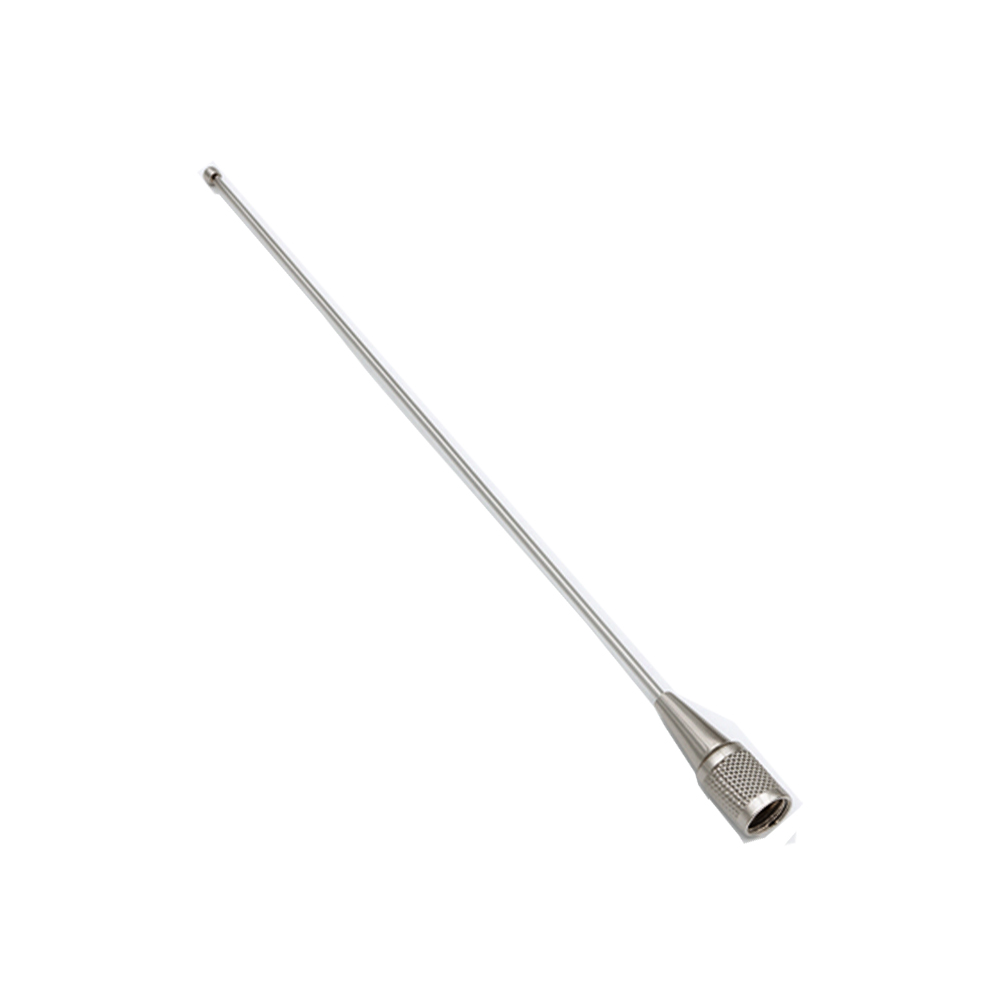

The CX-DJ17 Vehicle-Mounted DAB Antenna is a high-sensitivity, single-band whip antenna designed to deliver consistent DAB/FM radio reception for cars, boats, RVs, and other vehicles. Its rugged metal construction and streamlined design are optimized for external mounting, providing reliable performance under varied driving and environmental conditions.
