CX-LDS01

LDS Antenna

Operating Frequency: 13.56 MHz (Standard NFC frequency)
Supported Standards: NFC-A/B/F, ISO 14443A/B, ISO 15693, NFC Forum Types 1–5
Antenna Type: 3D LDS-structured loop antenna
Impedance: 50 Ω (matching network available)
Technology: 3D Laser Direct Structuring (LDS)
Material Substrate: LCP/PC/ABS compatible LDS-grade plastic
Form Factor: Ultra-compact 3D embedded antenna
Mounting Style: Integrated directly onto device housing
Connector Interface: Solder pads or metal feed pin to PCB
Design Flexibility: Allows multi-layer and complex 3D antenna geometries
Operating Temperature: –20°C to +85°C
Storage Temperature: –40°C to +90°C
Humidity Resistance: 5–95% RH (non-condensing)
Mechanical Strength: Highly durable structure integrated into the device body

Enquire Now

Download Specification

Descritption CX-LDS01

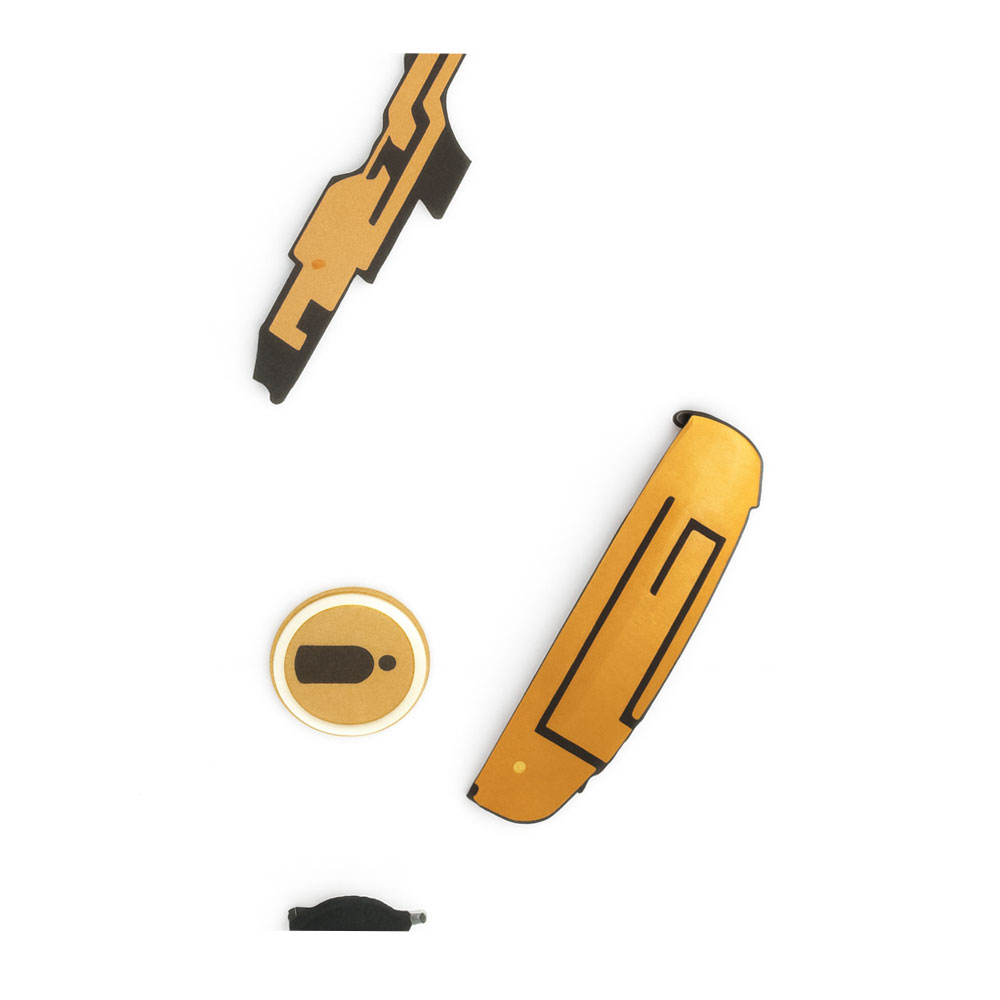

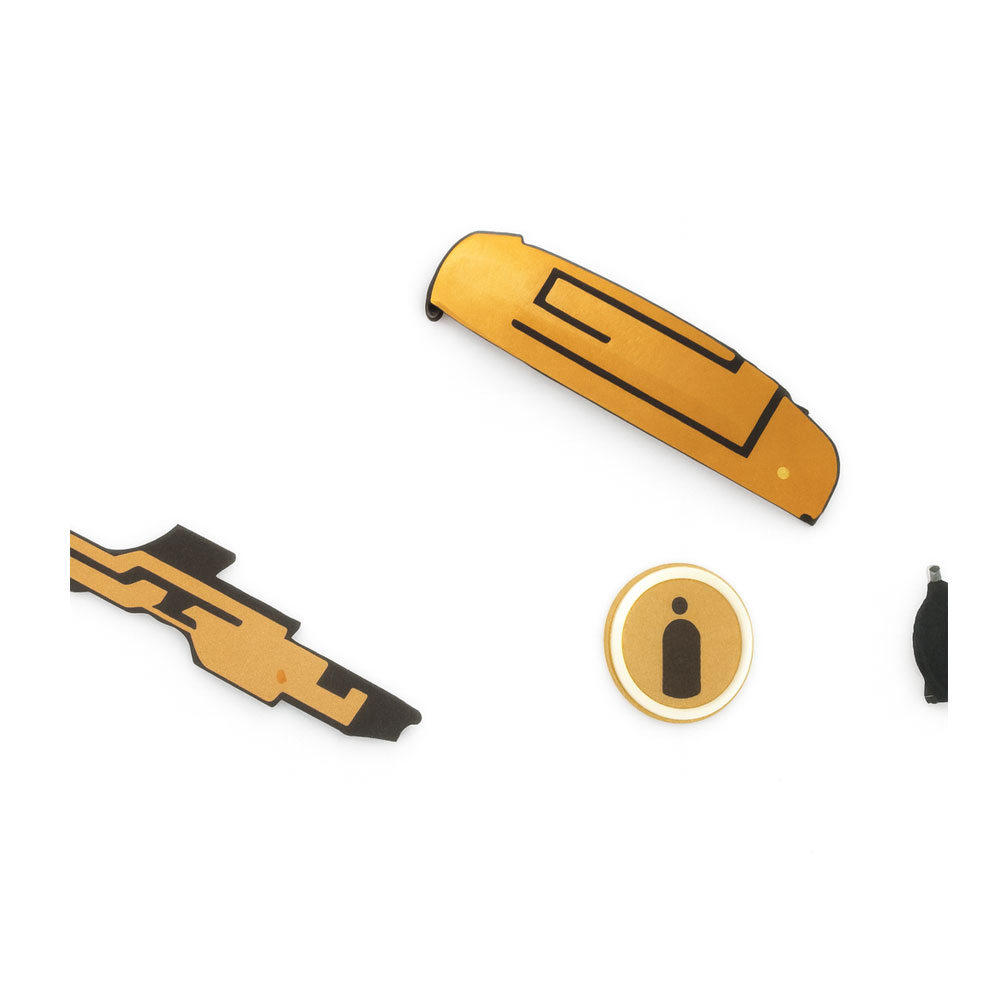

The CX-LDS01 LDS Antenna is a high-precision 3D-structured NFC antenna manufactured using Laser Direct Structuring (LDS) technology. This advanced production method allows the antenna pattern to be formed directly on 3D plastic housings, enabling ultra-compact integration and exceptional RF performance. Optimized for 13.56 MHz NFC communication, it delivers superior coupling efficiency, stable read range, and excellent reliability in small consumer electronics, wearable devices, access systems, and compact IoT hardware.
