CX-LDS03

LDS Antenna

Operating Frequency: 13.56 MHz (NFC) or custom RF band
Antenna Type: 3D LDS-formed loop / custom geometry antenna
Impedance: 50 Ω (custom impedance tuning supported)
Technology: Laser Direct Structuring (LDS)
Material Substrate: LDS-compatible plastics (LCP, PC+ABS, PA, etc.)
Mounting Method: Integrated into product housing via feed pin or solder pad
Operating Temperature: –20°C to +85°C
Storage Temperature: –40°C to +90°C
Humidity Tolerance: 5–95% RH (non-condensing)
Mechanical Durability: Highly resistant to shock, vibration, and wear
Regulatory Compliance: RoHS, REACH, Halogen-free (optional)

Enquire Now

Download Specification

Descritption CX-LDS03

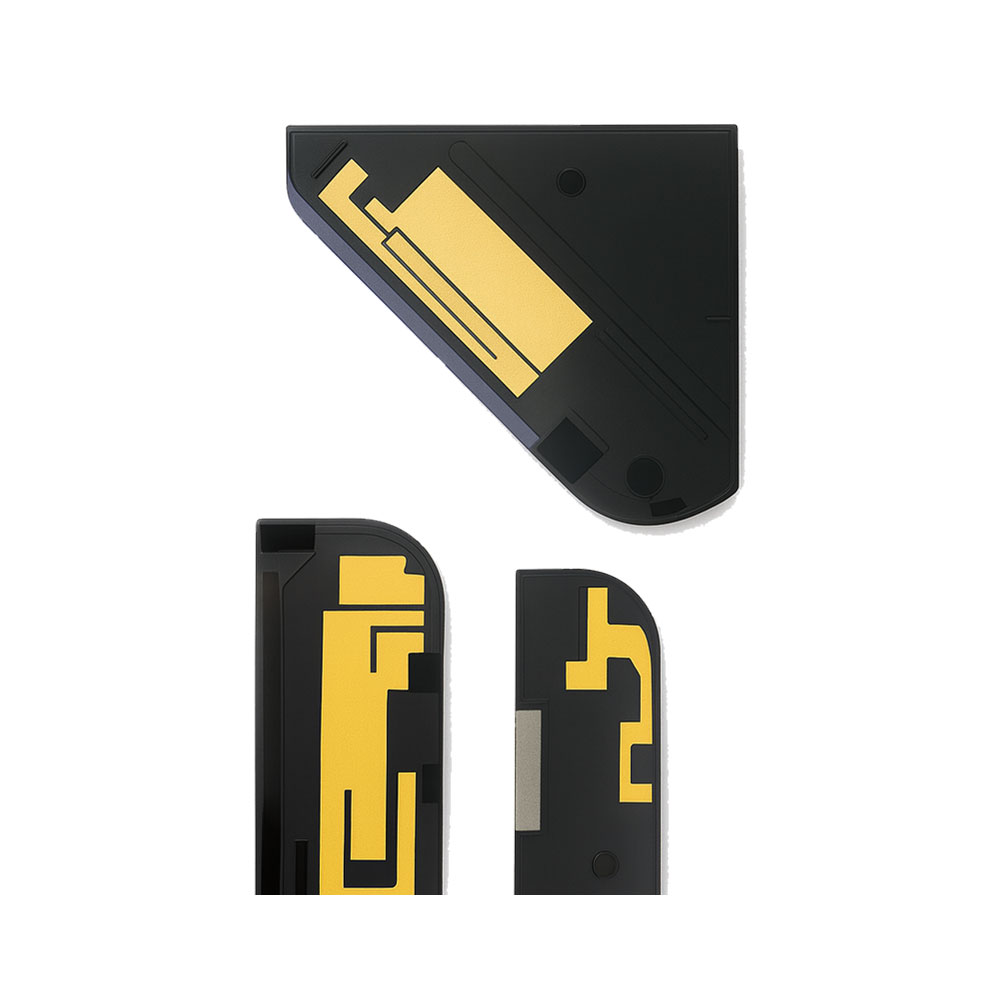

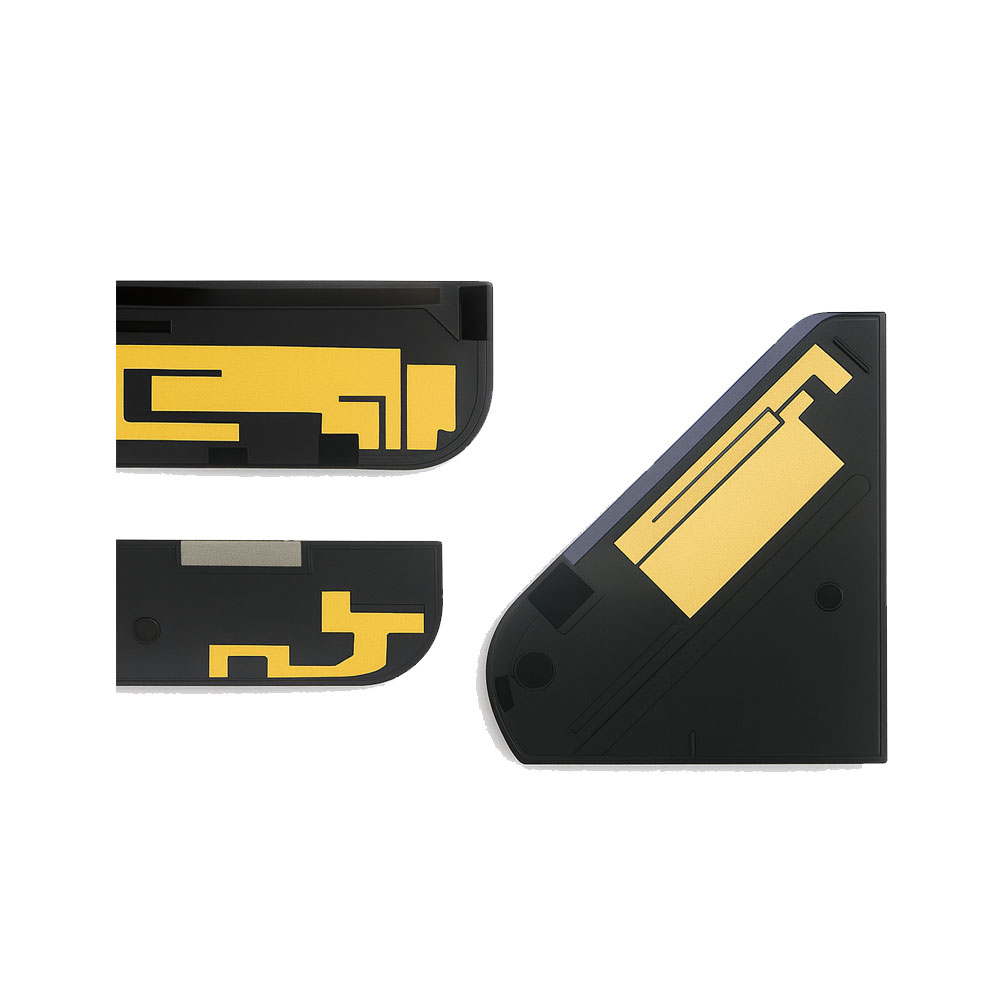

The CX-LDS03 LDS Antenna is an advanced 3D-structured antenna developed using Laser Direct Structuring (LDS) technology, enabling highly efficient RF performance in ultra-compact device designs. Engineered for NFC and short-range wireless communication, this antenna is ideal for applications requiring optimized magnetic field strength, stable tuning, and reliable connectivity in limited space environments. Commonly used in wearables, smart authentication devices, miniaturized IoT modules, portable medical equipment, and rugged electronics.
