CX-LDS05

LDS Antenna

Operating Frequency: 13.56 MHz (NFC) or custom RF range
Antenna Type: 3D LDS loop/structure
Supported Standards: NFC-A/B/F, ISO 14443A/B, ISO 15693, NFC Forum Type 1–5
Impedance: 50 Ω (custom match network supported)
Manufacturing: Laser Direct Structuring (LDS)
Material: LDS-ready plastics (LCP, PC+ABS, PA, etc.)
Form Factor: Compact 3D layout suitable for curved or tight enclosures
Mounting Method: Solder pad or metal feed pin to PCB
Design Flexibility: Supports multi-layer, wrap-around, and geometry-optimized patterns
Operating Temperature: –20°C to +85°C
Storage Temperature: –40°C to +90°C

Enquire Now

Download Specification

Descritption CX-LDS05

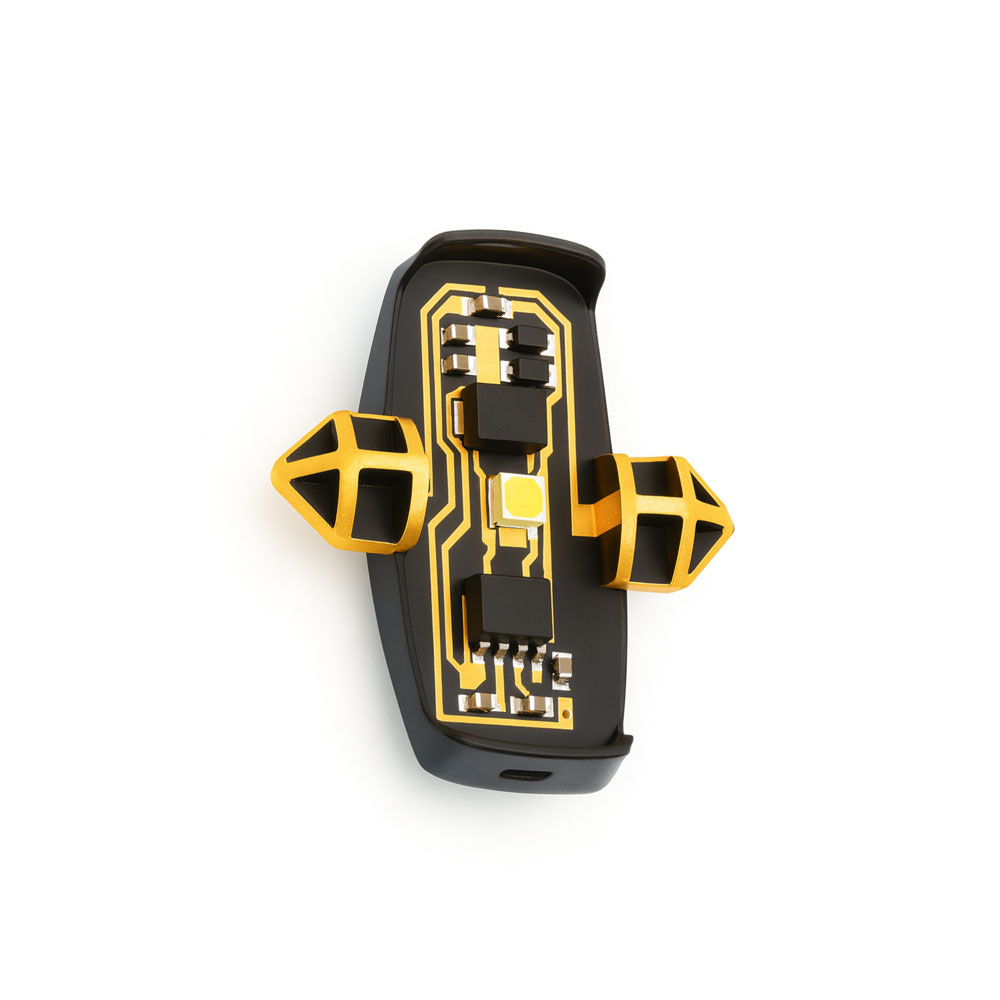

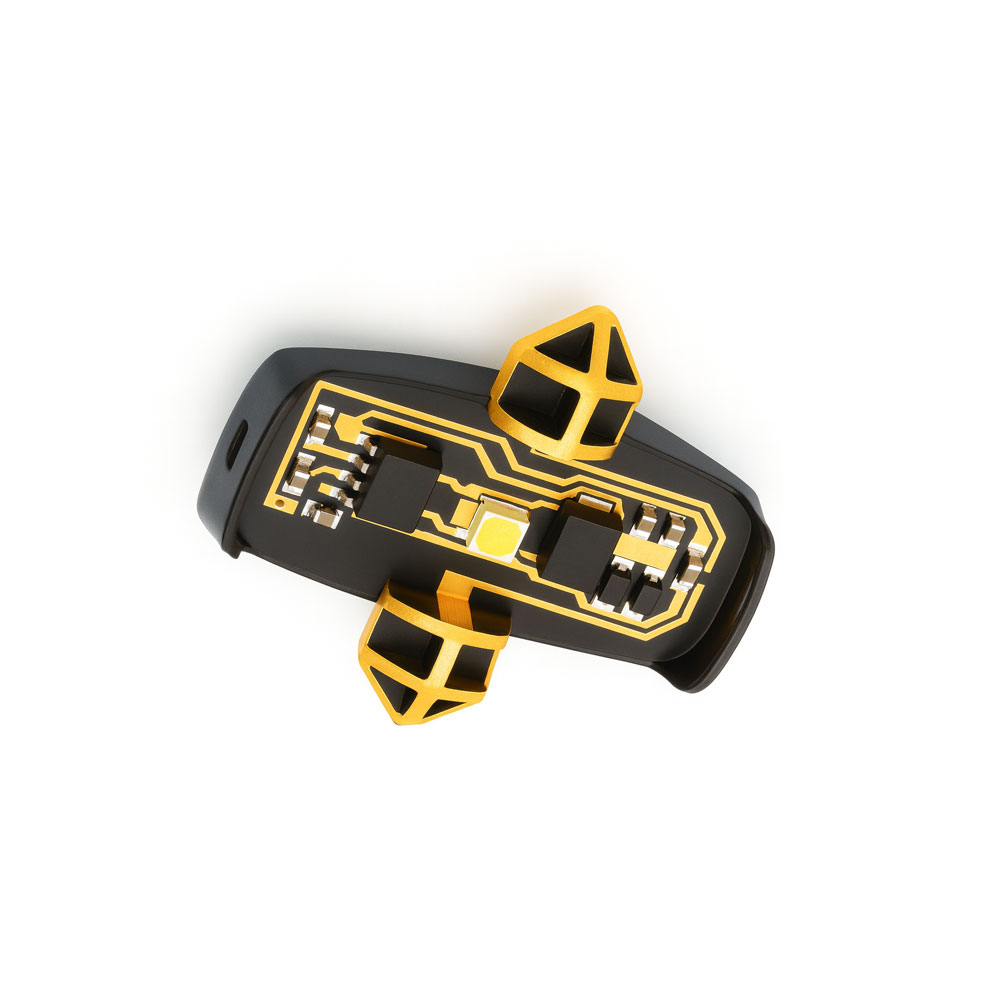

The CX-LDS05 LDS Antenna is a high-precision 3D antenna produced using Laser Direct Structuring (LDS) technology, enabling complex antenna patterns to be integrated directly onto compact device housings. Designed for NFC and short-range RF communication, it delivers strong magnetic coupling, excellent tuning stability, and high efficiency in confined spaces. Ideal for next-generation wearables, compact IoT devices, authentication systems, and smart electronic modules.
