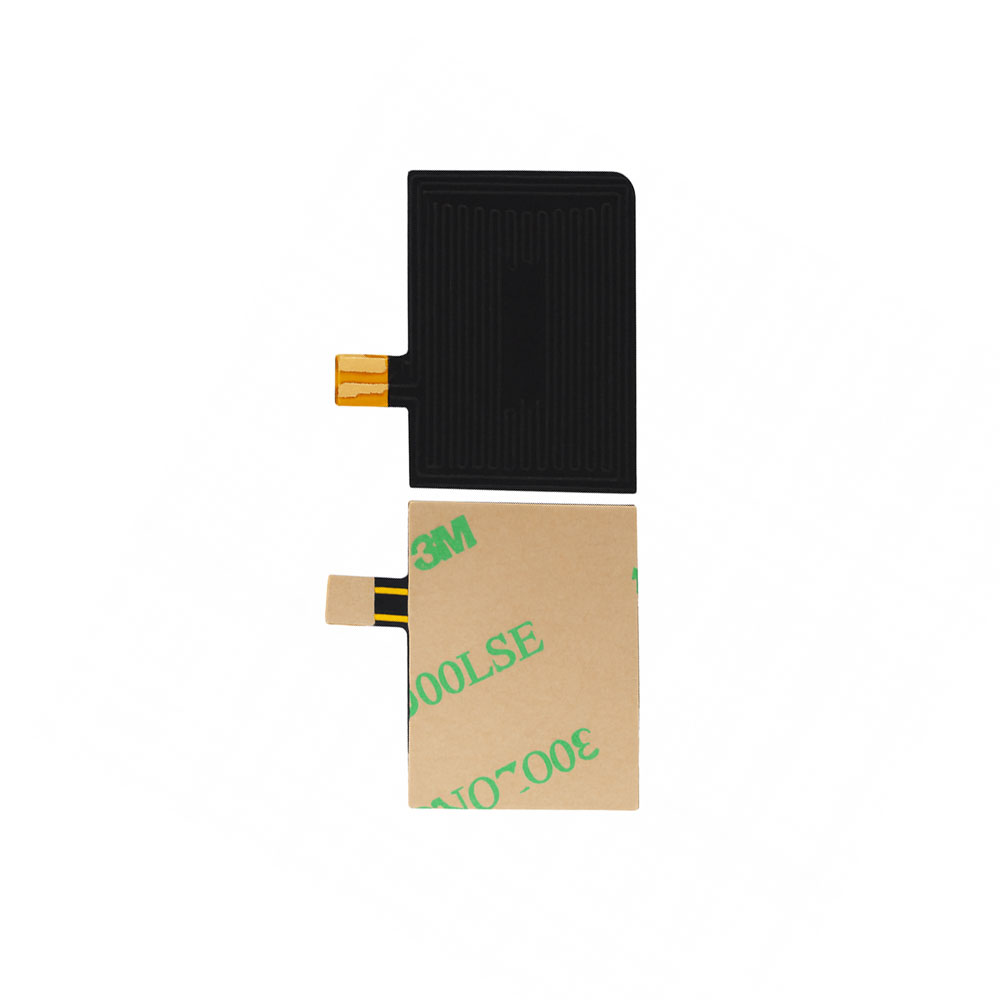

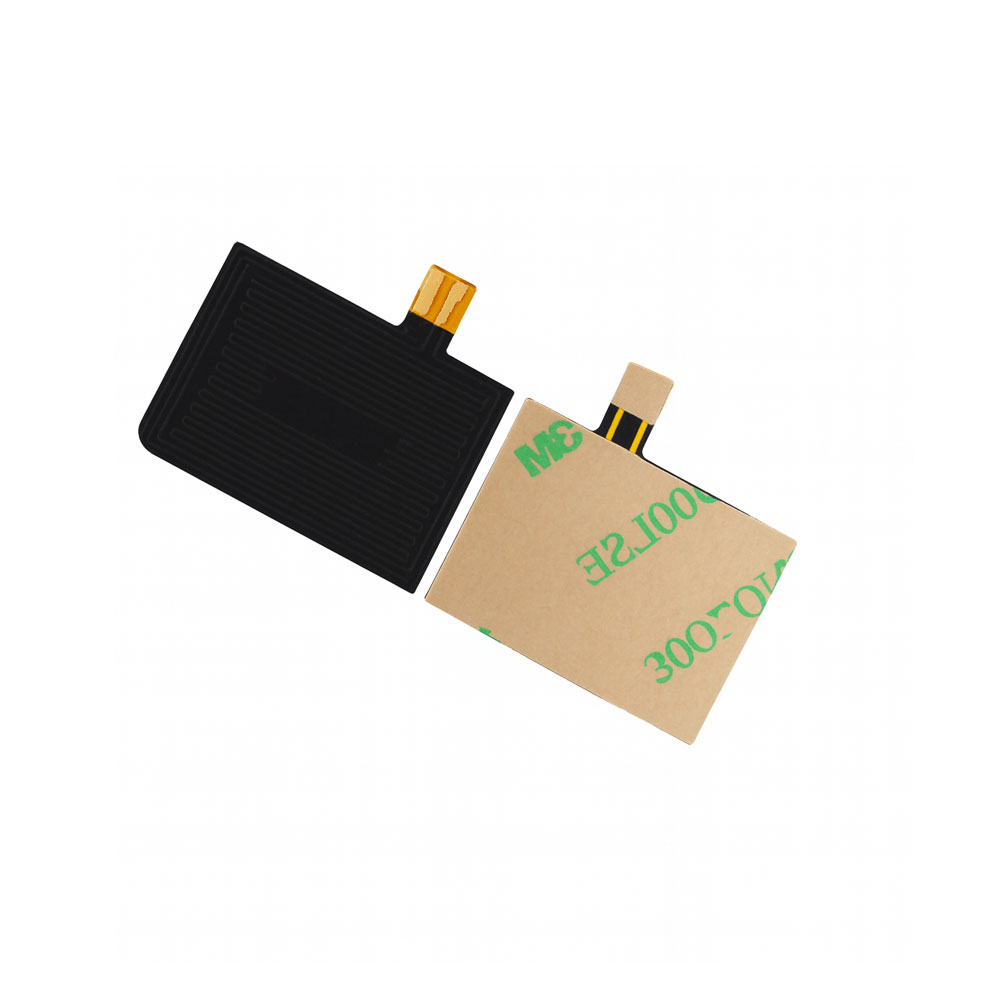

CX-NFC01

NFC Antenna

Frequency: 13.56 MHz (Standard NFC frequency)
Supported Standards: ISO 14443 A/B, ISO 15693, NFC Forum
Inductance: Optimized based on customer IC requirements
Impedance: 50 Ω / custom impedance matching available
Read Range: High-sensitivity design for stable near-field communication
Operating Mode: Passive NFC
Radiation Type: Magnetic field coupling
Antenna Type: Flexible/PCB NFC Loop Antenna
Dimensions: Customizable (standard compact size available)
Material: Copper / Aluminum PCB / Flexible substrate
Connector Type: Direct pad connection / U.FL / Custom cable
Mounting: Adhesive-backed or board-mounted
Operating Temperature: –20°C to +70°C
Storage Temperature: –40°C to +85°C
Humidity Resistance: 5% to 95% non-condensing
Durability: Flexible and impact-resistant material for long-term stability

Enquire Now

Download Specification

Descritption CX-NFC01

The CX-NFC01 NFC Antenna is a compact, high-sensitivity Near Field Communication antenna designed for seamless short-range data exchange. Built with precision copper/foil PCB design, it offers excellent magnetic field performance, stable coupling, and reliable operation across NFC-enabled applications. Ideal for smart devices, payment systems, IoT authentication, access control, and portable electronics where low power and high efficiency are essential.
