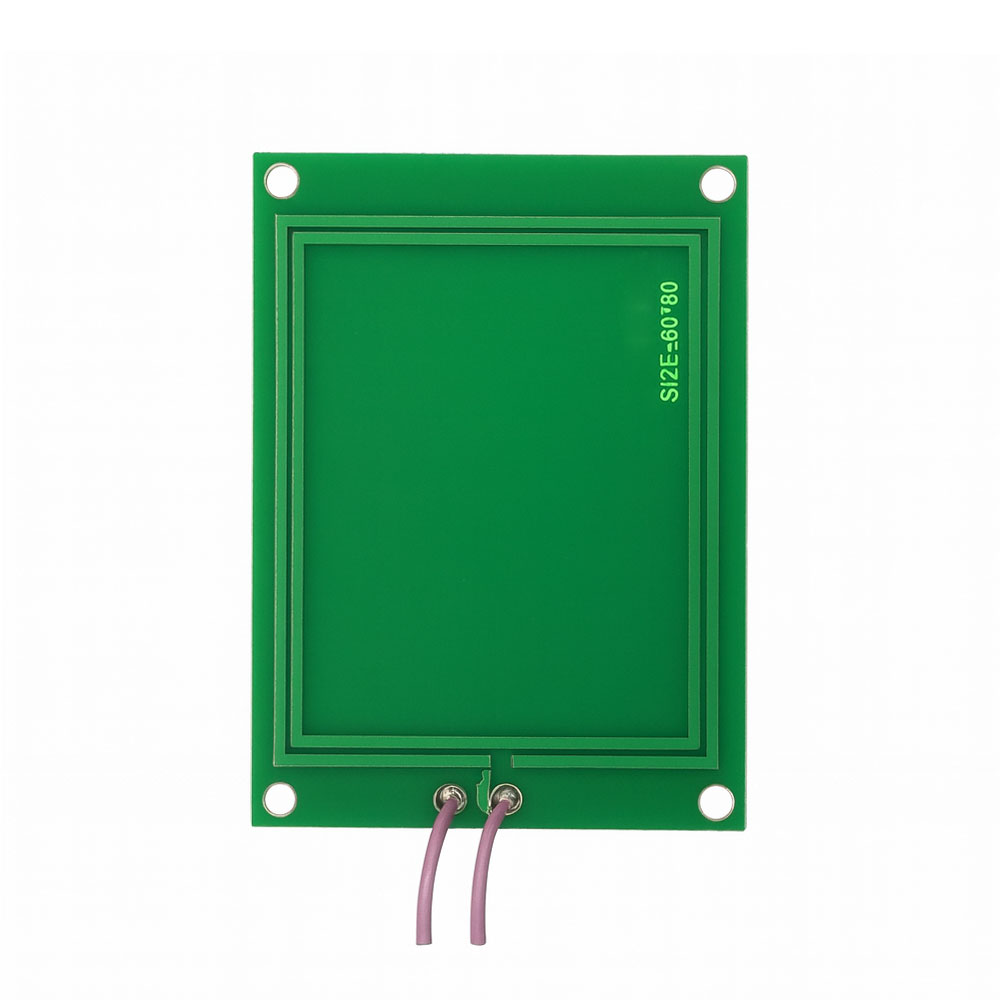

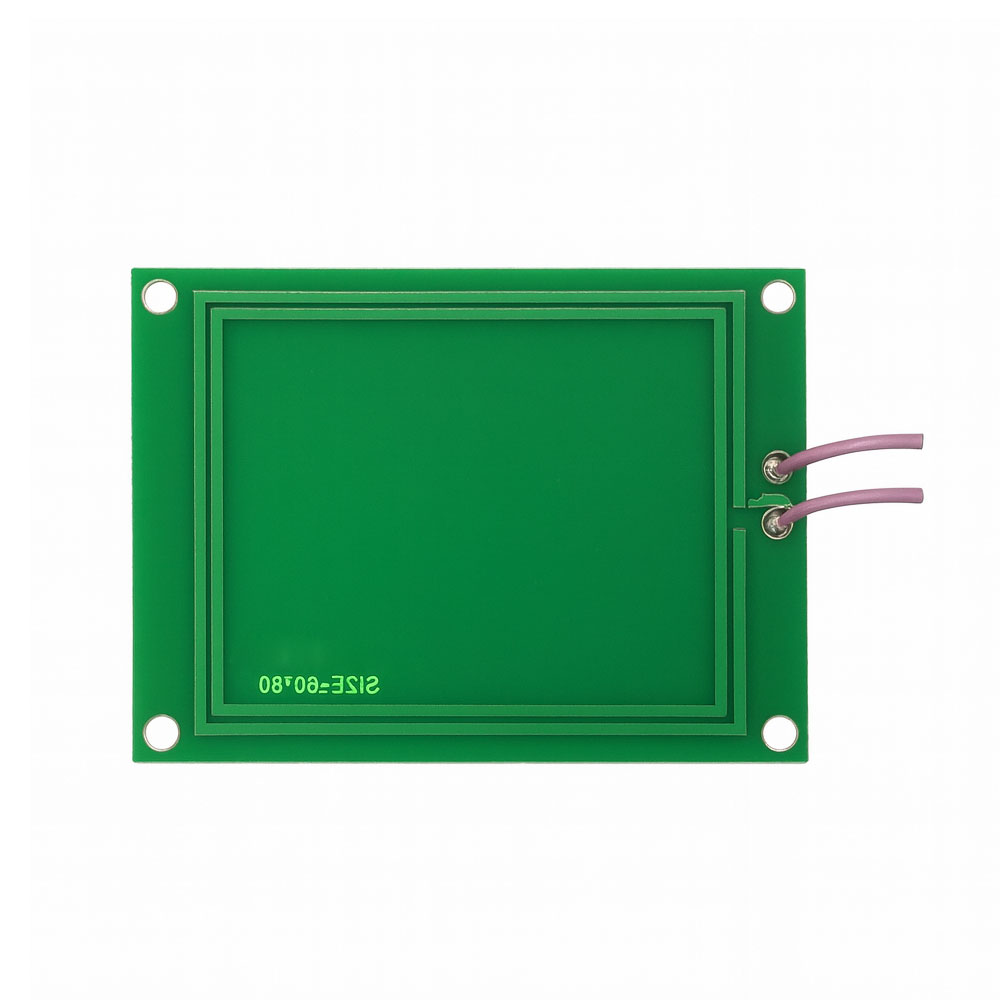

CX-NFC04

NFC Antenna

Operating Frequency: 13.56 MHz (NFC Standard)
Supported NFC Standards: ISO 14443A/B, ISO 15693, NFC-A/B/F, NFC Forum Type 1–5
Inductance Value: Precision tuned for compatibility with major NFC chipsets
Impedance: 50 Ω (matching network customizable)
Q-Factor: High Q design ensures optimized magnetic coupling and low energy loss
Read Range: Excellent near-field performance with stable communication distance
Coupling Efficiency: Enhanced loop geometry improves tag and reader sensitivity
Antenna Type: High-efficiency copper loop antenna
Construction: Copper trace on PET, PI, or FR4 substrate
Form Factor: Slim, compact profile suitable for thin devices
Connector Options: Wire leads, U.FL, or PCB solder pads
Mounting Style: Adhesive backing or integrated PCB mounting
Flexibility: Suitable for both flat and slightly curved surfaces
Operating Temperature: –20°C to +85°C
Storage Temperature: –40°C to +90°C
Moisture & Humidity: 5–95% RH (non-condensing)
Vibration Resistance: Designed for rugged IoT and industrial use
Compliance: RoHS and REACH compliant

Enquire Now

Download Specification

Descritption CX-NFC04

The CX-NFC04 NFC Antenna is a high-performance 13.56 MHz loop antenna designed for applications that require stable, reliable, and high-efficiency NFC communication. With an optimized magnetic field and low-loss copper structure, it delivers superior read/write performance even in compact or metal-adjacent device environments. Ideal for smart access systems, industrial controllers, medical devices, secure authentication systems, and IoT products requiring robust near-field connectivity.
