CX-NFC02

NFC Antenna

Operating Frequency: 13.56 MHz (NFC standard)
Supported Protocols: NFC Forum Type 1–5, ISO 14443 A/B, ISO 15693
Inductance: Precision-tuned for optimal matching with NFC controllers
Impedance: 50 Ω / custom matching supported
Communication Range: Enhanced near-field sensitivity for improved coupling
Operating Type: Passive NFC loop antenna
Q-Factor: High Q for improved efficiency and lower signal loss
Antenna Structure: Copper loop antenna (Flexible/PCB variant)
Dimensions: Compact and customizable as per device integration
Material: Copper trace on FR4 / PET / Flexible substrate
Connector Options: Solder pads / cable leads / U.FL available
Mounting Method: Adhesive backing or embedded PCB mounting
Flexibility: Suitable for curved or compact device designs
Operating Temperature: –20°C to +70°C
Storage Temperature: –40°C to +85°C
Humidity Tolerance: 5–95% RH, non-condensing
Durability: Resistant to bending stress and long-term use
RoHS Compliance: Yes

Enquire Now

Download Specification

Descritption CX-NFC02

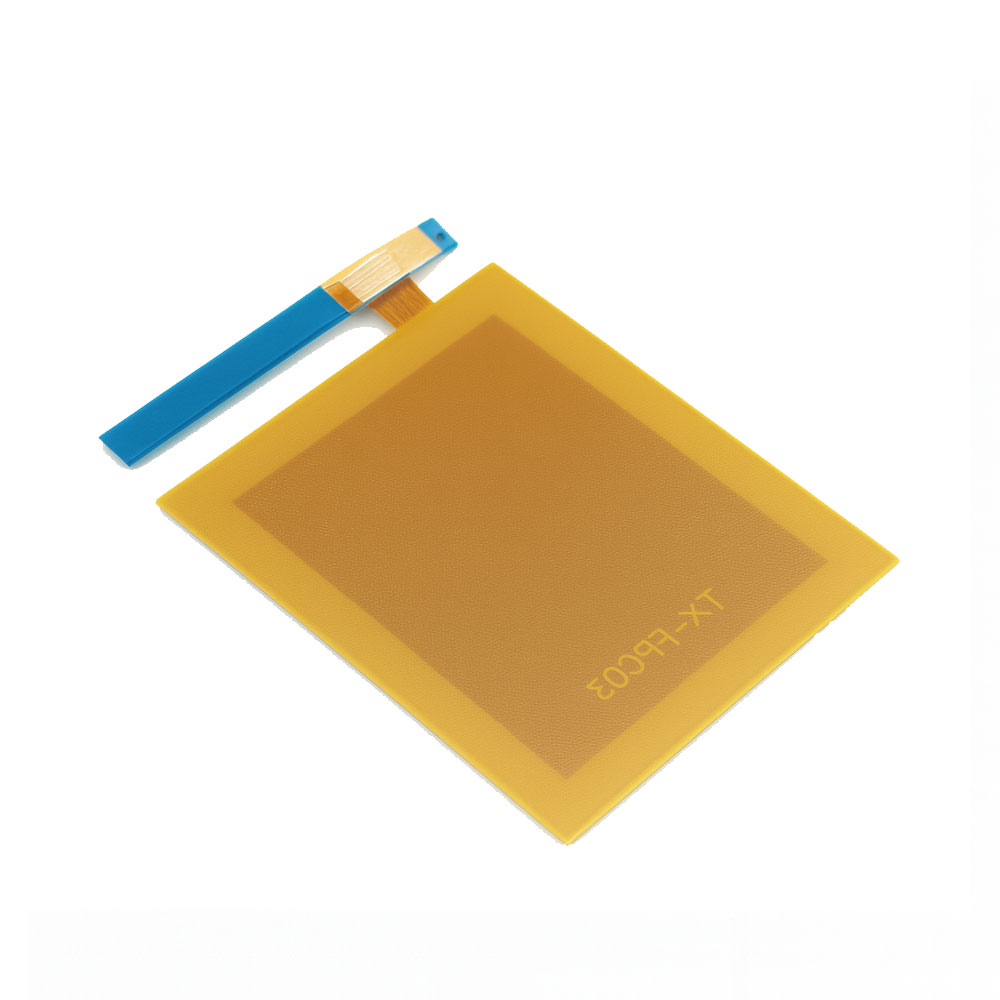

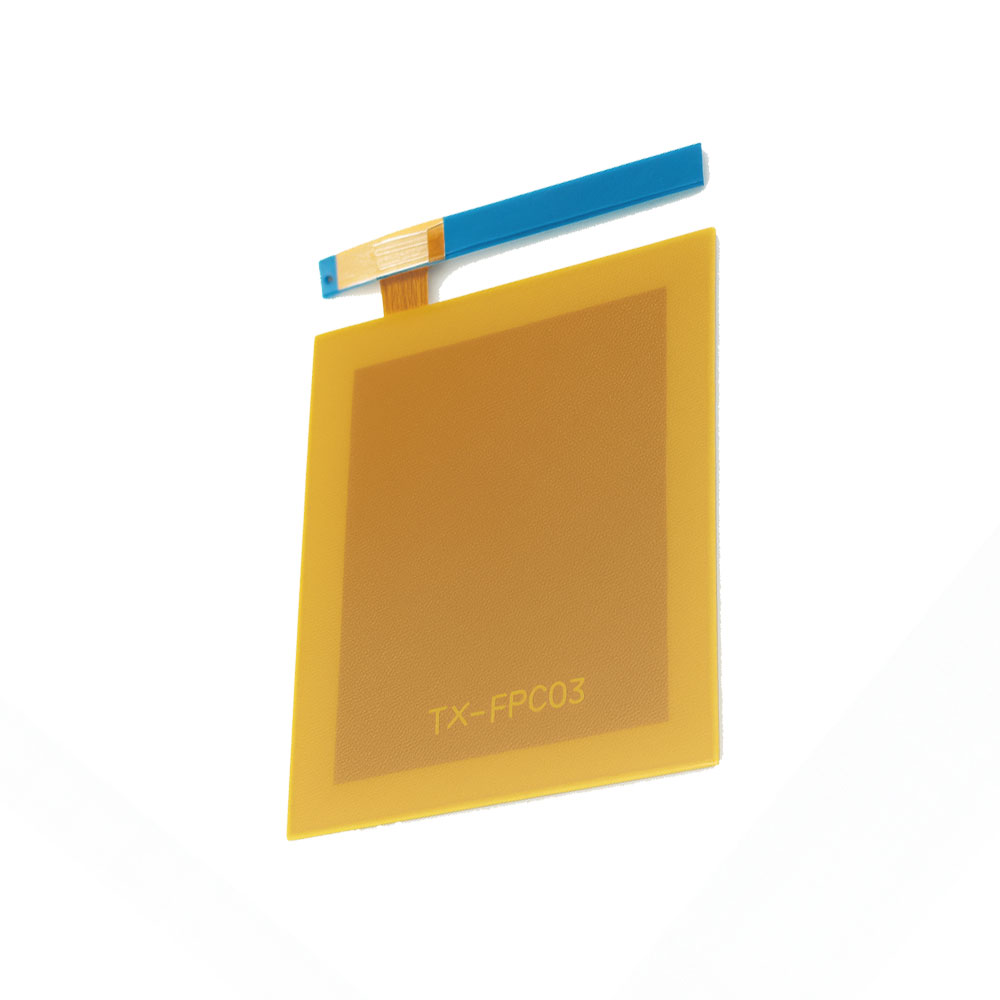

The CX-NFC02 NFC Antenna is a high-performance loop antenna engineered for fast, stable, and secure Near Field Communication at 13.56 MHz. Designed with an optimized magnetic field footprint, it ensures superior read/write sensitivity, making it ideal for smart access systems, POS terminals, wearable devices, IoT modules, and consumer electronics. Its compact form factor and reliable impedance stability deliver consistent performance across various NFC chipsets and environments.
