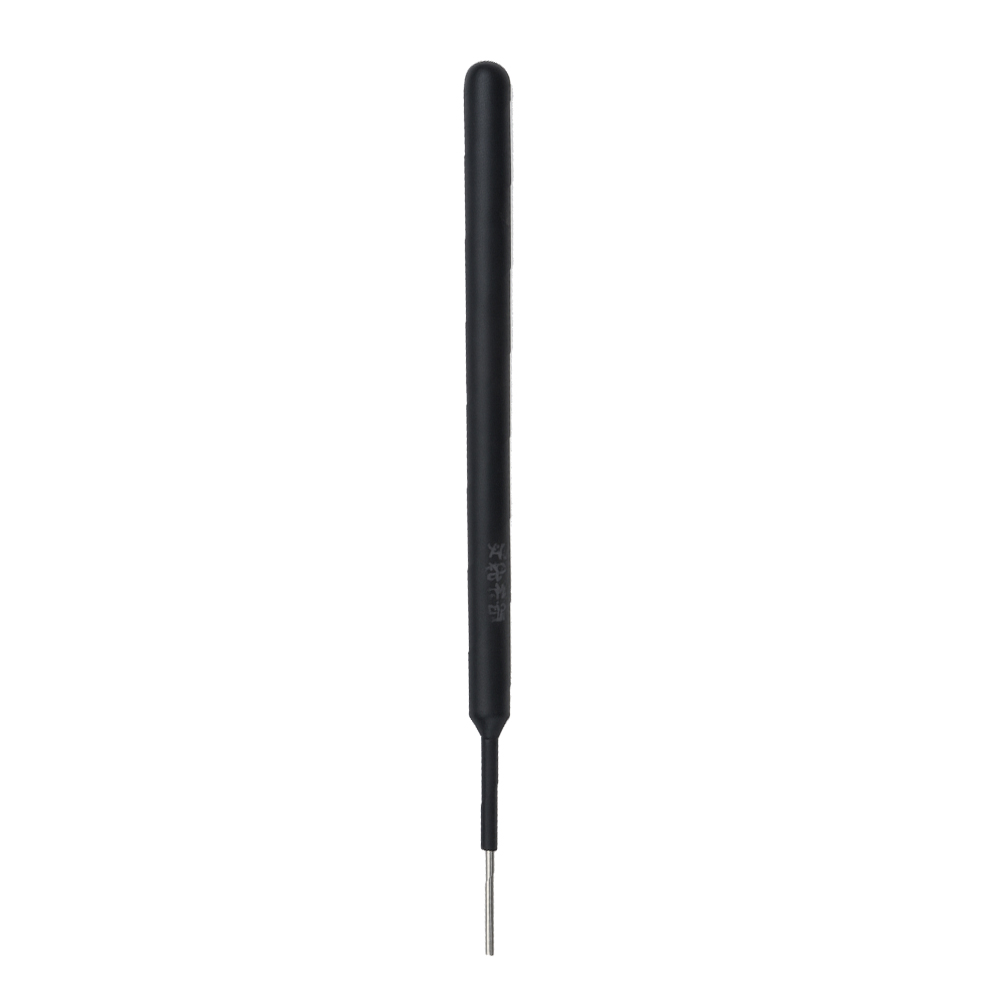

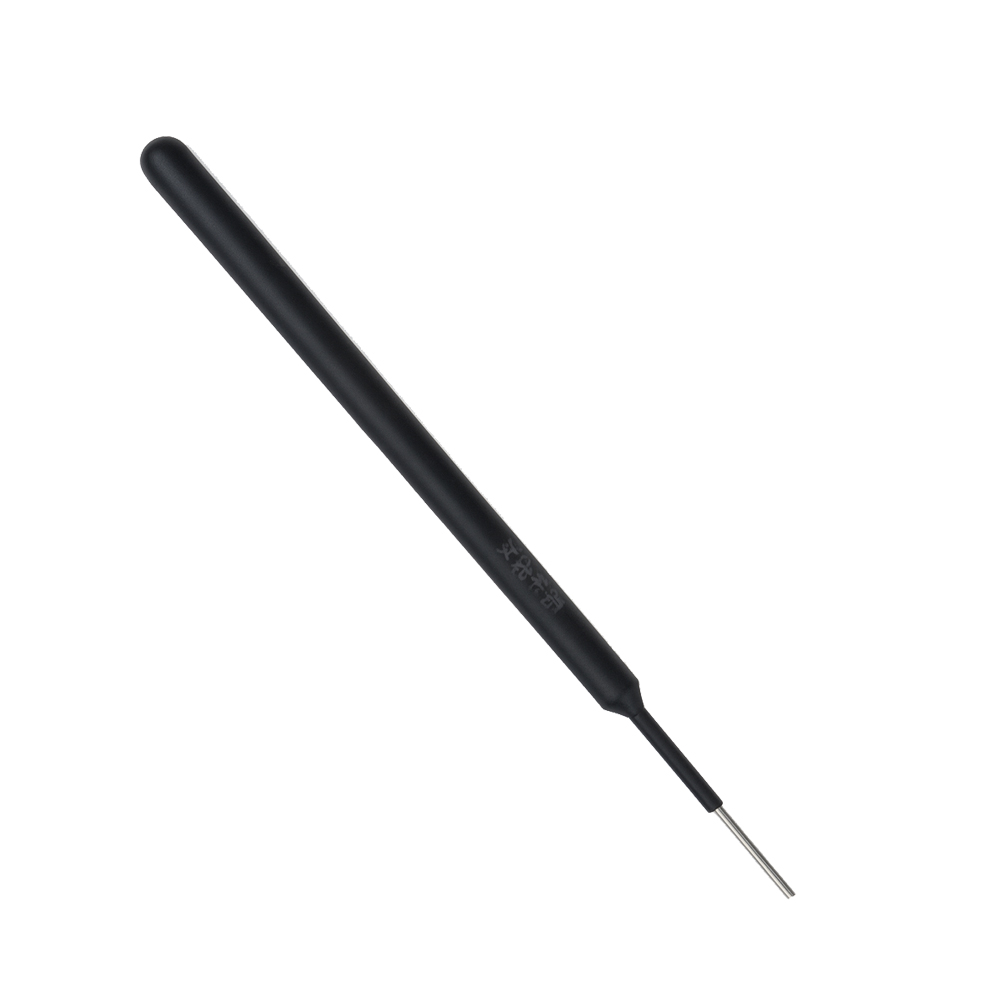

CX-TUB02

Copper Tube Antenna

Frequency Range: 380–470 MHz / 433 MHz (custom frequency options available)
Antenna Type: Omni-directional
Gain: 2–5 dBi (depending on tuning)
VSWR: ≤ 1.5
Impedance: 50 Ω
Polarization: Vertical
Radiation Pattern: Omni-directional, optimized for long-range communication
Max Power Handling: 10 W
Antenna Material: High-purity copper tube for low-loss conductivity
Outer Cover: Durable ABS / PVC sleeve (customizable)
Length: 180–220 mm (customizable)
Connector Type: SMA / RP-SMA / IPEX / Customized
Cable Type (if applicable): RG174 / RG178 / 1.13 mm

Enquire Now

Download Specification

Descritption CX-TUB02

The CX TUB02 is a rugged, high-efficiency copper tube antenna engineered for stable RF performance across challenging environments. Designed with a durable copper tube radiating element, it delivers excellent signal strength, low loss, and wide compatibility with wireless modules. Ideal for industrial IoT, telemetry, remote monitoring, and communication devices requiring consistent and reliable antenna performance.
