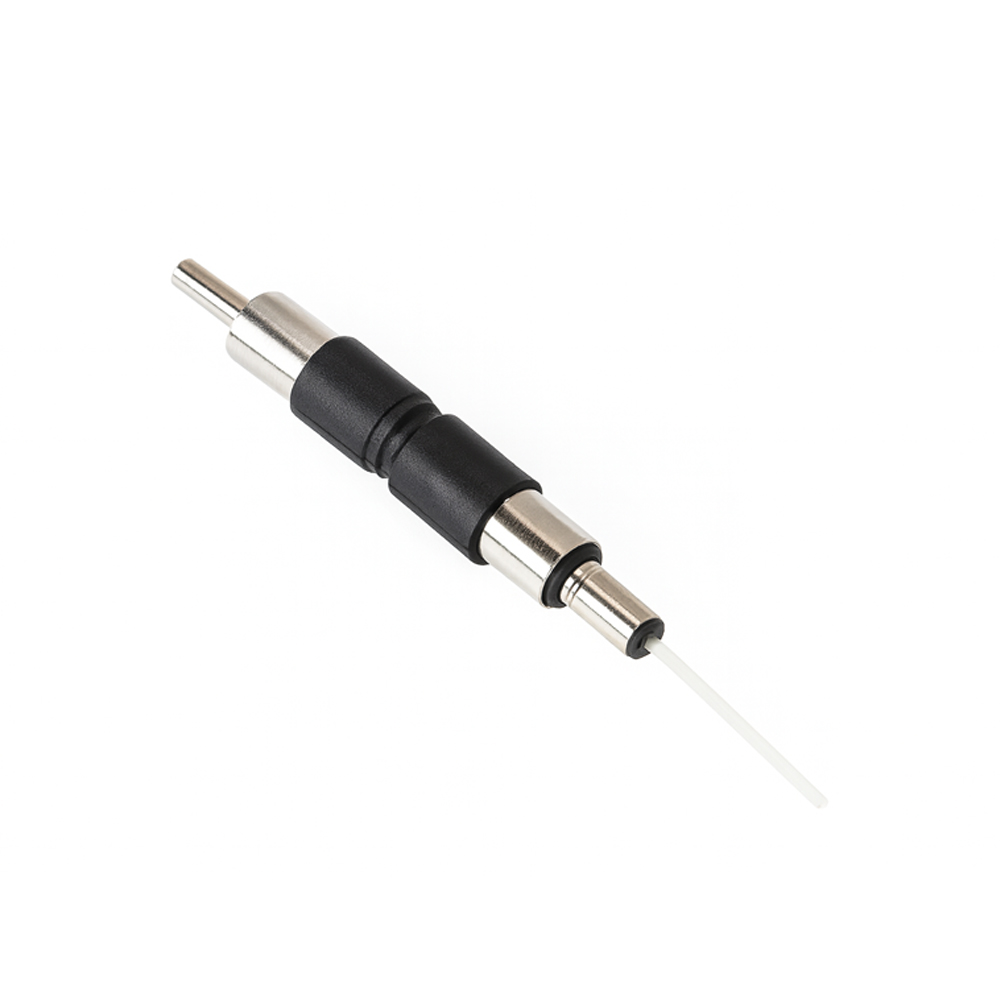

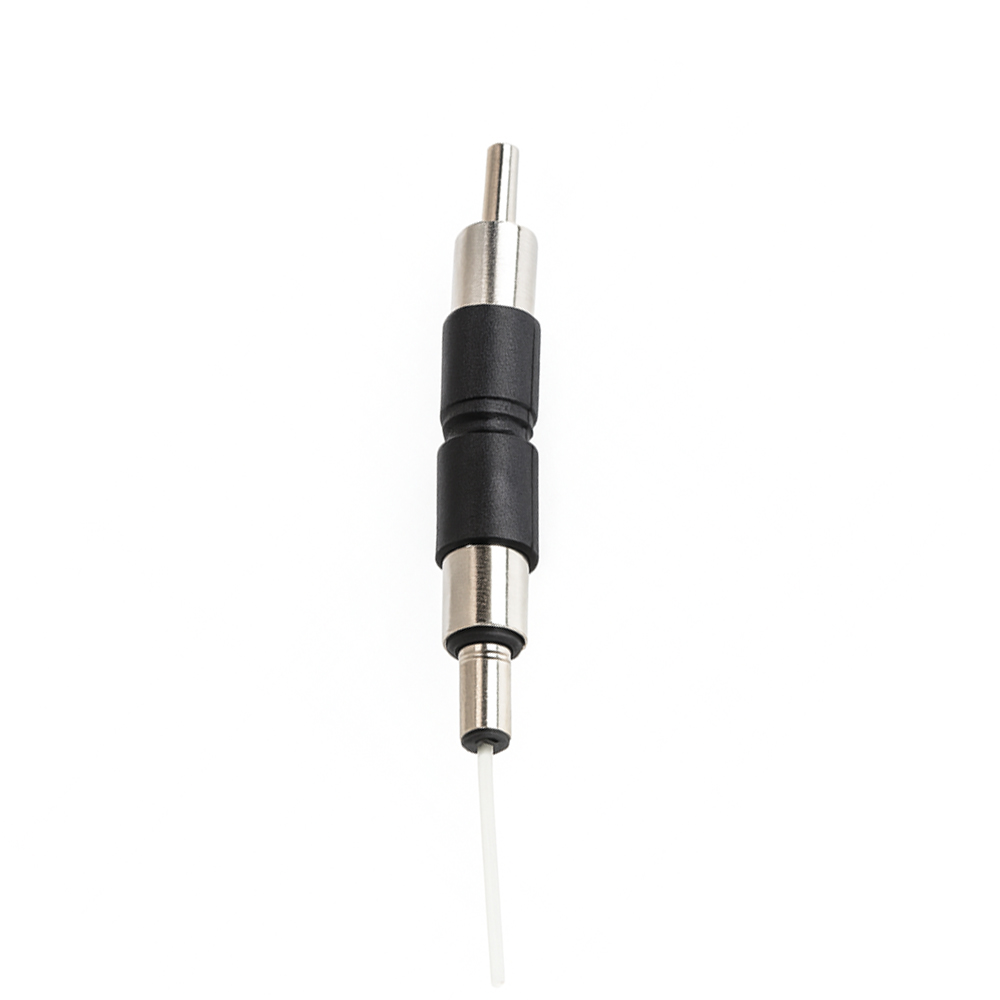

CX-TUB04

Copper Tube Antenna

Frequency Range: 800 MHz – 6000 MHz (customizable based on requirement)
VSWR: ≤ 2.0 typical
Gain: 2 dBi – 5 dBi (depending on tuned frequency band)
Impedance: 50 Ω
Polarization: Vertical / Linear
Radiation Pattern: Omni-directional
Connector Type: SMA / RP-SMA / MMCX / U.FL (optional)
Material: High-conductivity copper tube with durable outer coating
Length: Customizable as per frequency tuning
Mounting Type: Direct connector mount or cable-mounted
Color: Copper / Black-coated
Cable Type (Optional): RG174 / RG178 / 1.13mm coax
Operating Temperature: −40°C to +85°C
Humidity Resistance: 95% non-condensing
Corrosion Protection: Anti-oxidation coating on copper tube
Durability: Suitable for indoor & outdoor installations

Enquire Now

Download Specification

Descritption CX-TUB04

The CX-TUB04 is a precision-engineered copper tube antenna designed for stable RF performance, enhanced conductivity, and superior durability. Built for applications requiring low-loss transmission and rugged outdoor reliability, it delivers consistent signal strength across its tuned frequency band. Ideal for IoT nodes, telemetry units, industrial wireless systems, and custom RF deployments.
