CX-TUB05

Copper Tube Antenna

Frequency Range: 800 MHz – 6000 MHz (tunable/customizable)
Gain: 2–5 dBi (band-dependent)
VSWR: ≤ 2.0 typical
Impedance: 50 Ω
Polarization: Linear / Vertical
Radiation Pattern: Omni-directional
Connector Options: SMA / RP-SMA / U.FL / MMCX (as required)
Radiator Material: High-grade copper tube
Antenna Length: Custom based on frequency tuning
Mounting: Direct connector mount or cable mount
Color: Copper / Black-coated (optional)
Cable (Optional): RG174 / RG178 / 1.13mm coaxial cable
Operating Temperature: −40°C to +85°C
Storage Temperature: −40°C to +90°C
Humidity: Up to 95% non-condensing
Corrosion Protection: Anti-oxidation copper coating
Application Environment: Suitable for indoor & outdoor deployments

Enquire Now

Download Specification

Descritption CX-TUB05

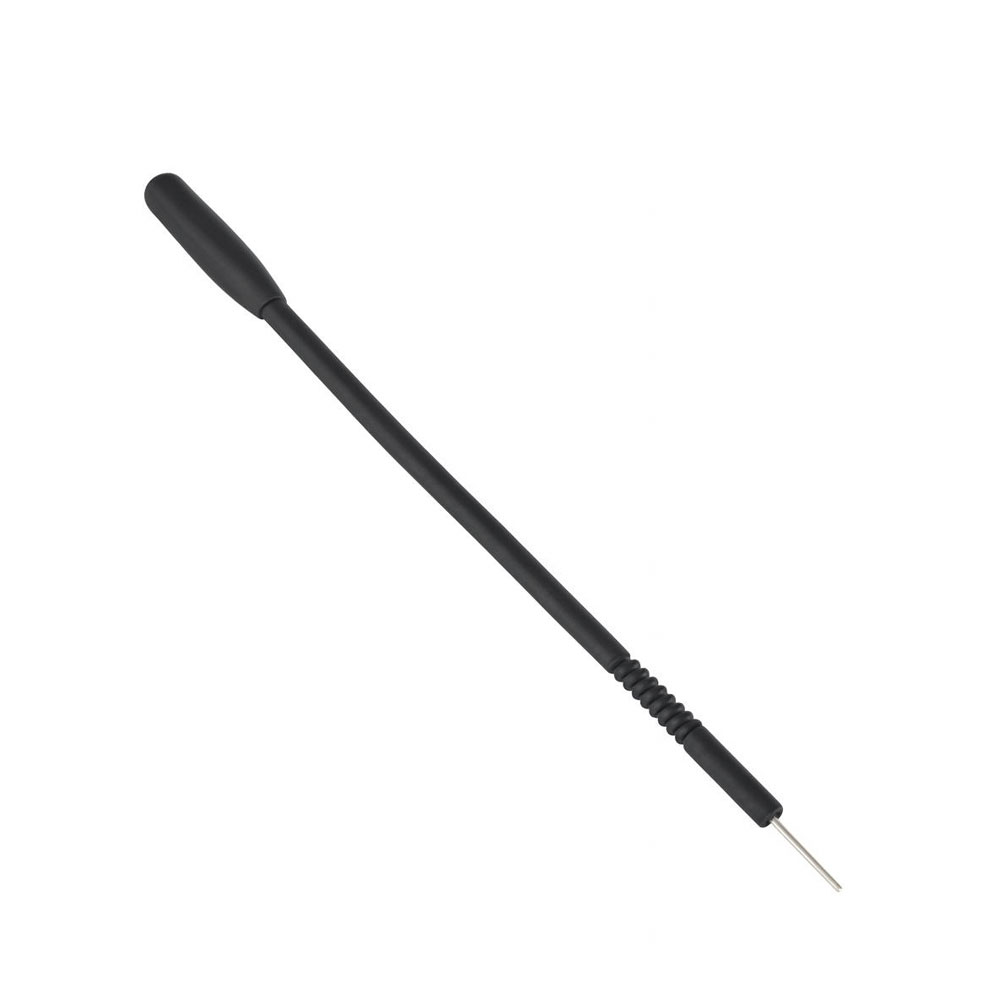

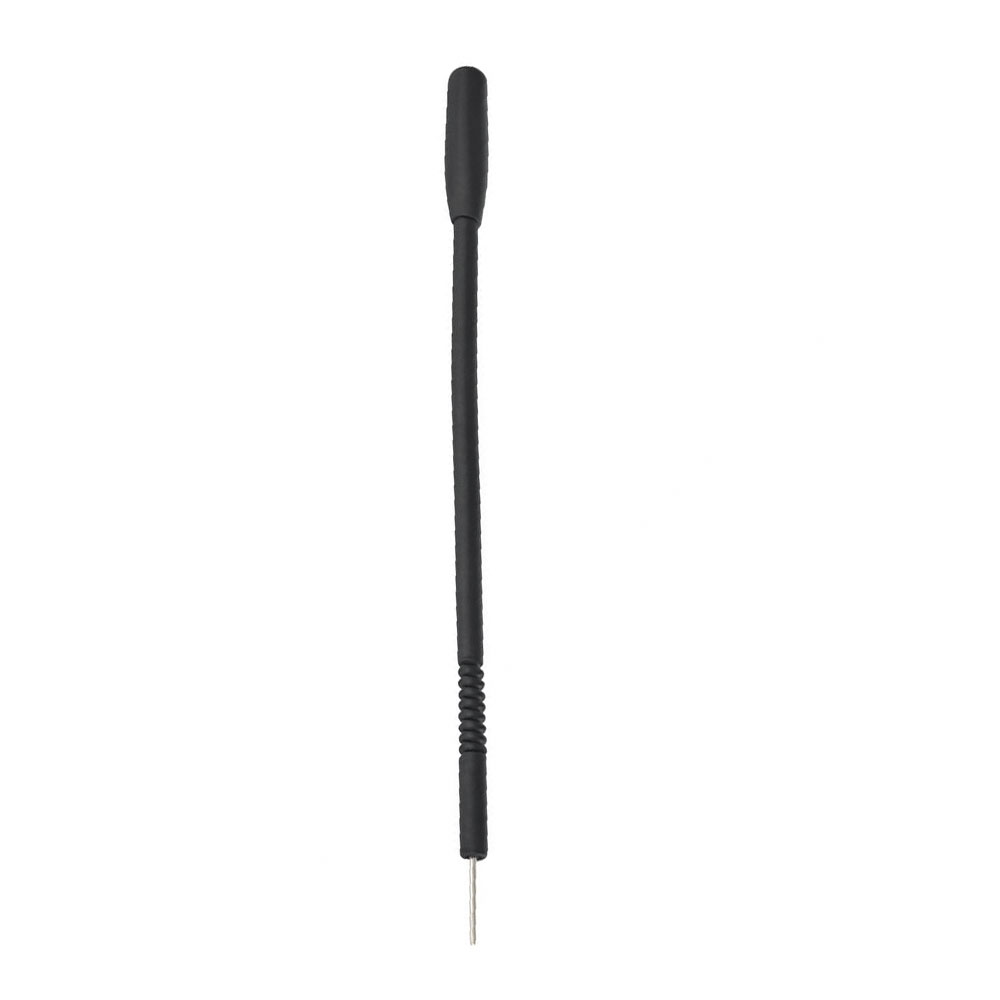

The CX-TUB05 Copper Tube Antenna is a compact, high-efficiency RF antenna designed for applications requiring stable performance, low signal loss, and excellent durability. Constructed using a precision copper tube radiator, this antenna ensures superior conductivity and consistent RF characteristics across a wide operating band. It is ideal for IoT devices, wireless modules, smart metering, telemetry systems, industrial controllers, and embedded RF solutions.
