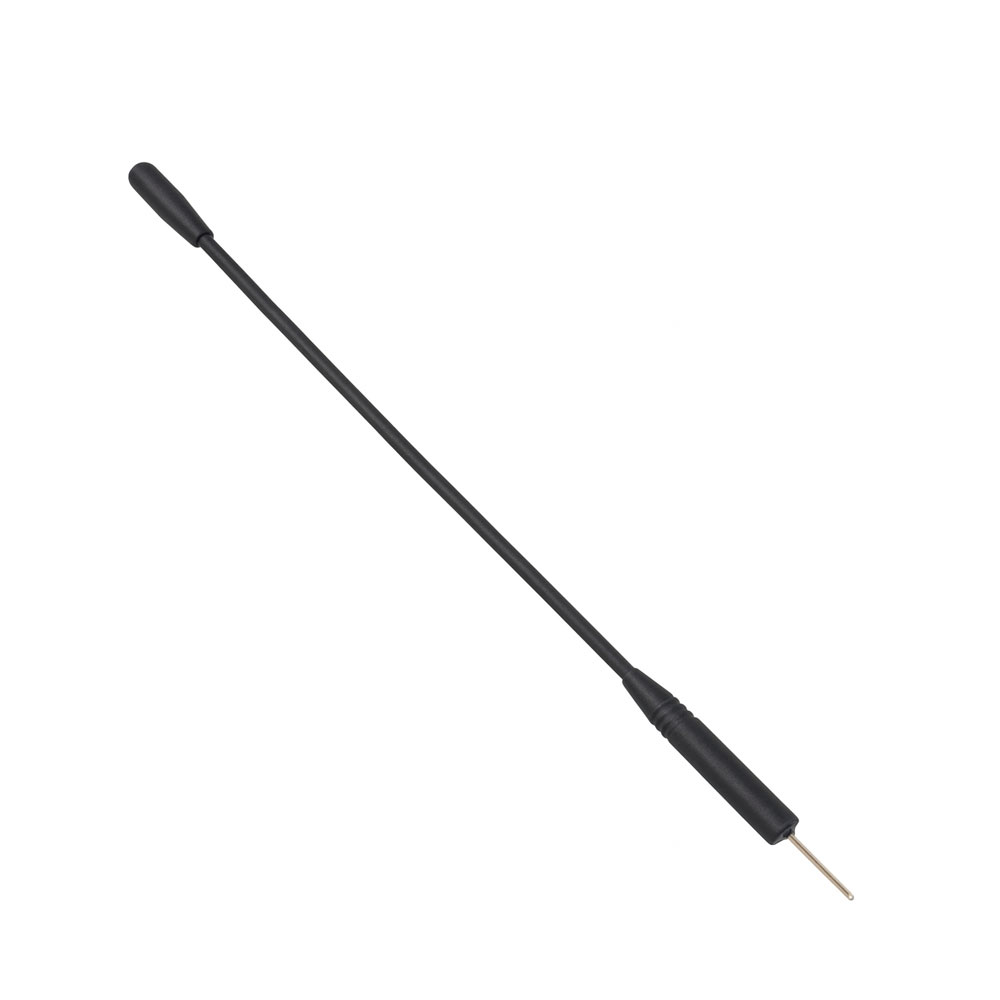

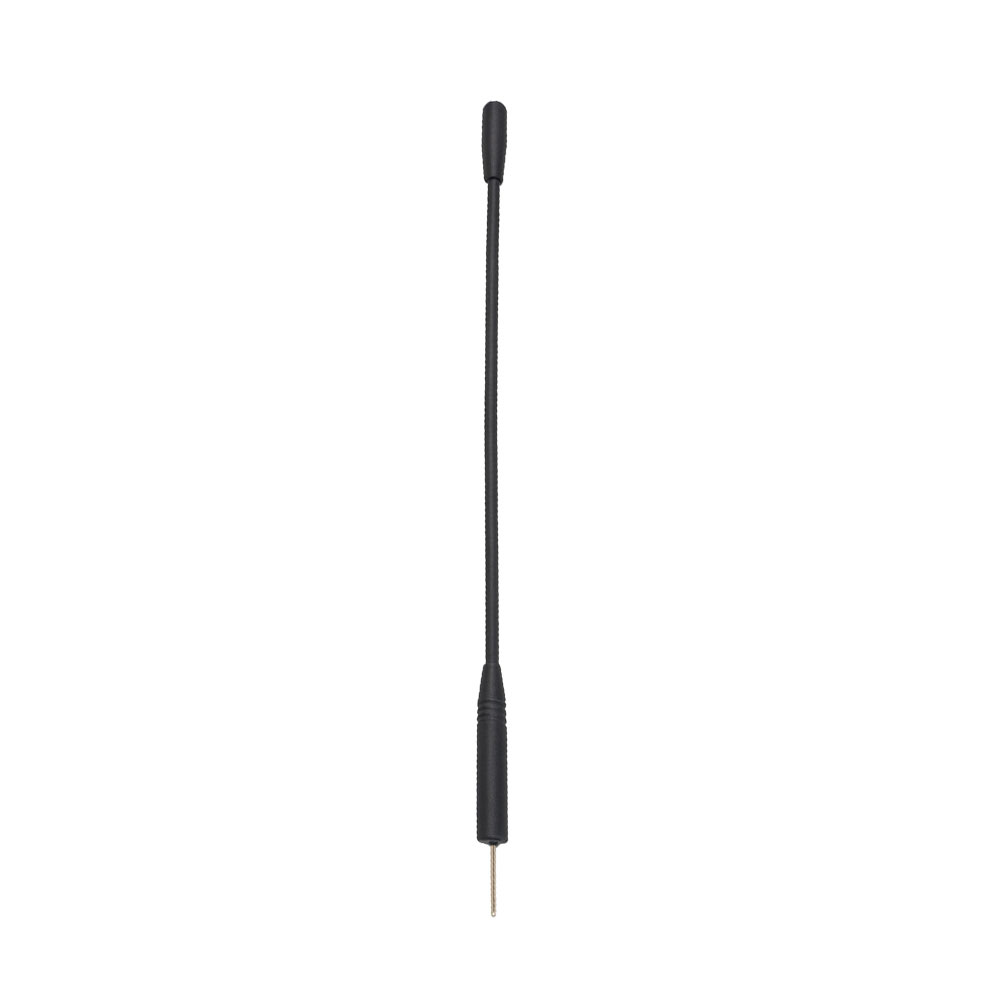

CX-TUB06

Copper Tube Antenna

Frequency Range: 400 MHz – 6000 MHz (custom-tunable per application)
Gain: 2 dBi to 5 dBi depending on tuned frequency
VSWR: ≤ 2.0 typical
Impedance: 50 Ω
Polarization: Linear / Vertical
Radiation Pattern: Omni-directional
Connector Options: SMA / RP-SMA / U.FL / MMCX, as required
Radiator Material: High-purity copper tube
Antenna Dimensions: Customizable based on operating frequency
Mounting Type: Direct connector mount / cable mount
Cable Option: RG174, RG178, or 1.13 mm coax
Finish: Copper or black-coated protective finish
Operating Temperature: −40°C to +85°C
Storage Temperature: −40°C to +90°C
Humidity Resistance: Up to 95% non-condensing
Corrosion Protection: Anti-oxidation surface treatment
Usage Environment: Suitable for both indoor and outdoor devices

Enquire Now

Download Specification

Descritption CX-TUB06

The CX-TUB06 Copper Tube Antenna is an ultra-reliable, high-conductivity RF antenna engineered for applications requiring stable signal performance and rugged build quality. Made from premium copper tubing, it provides excellent electrical efficiency, low signal attenuation, and consistent radiation characteristics across a broad frequency range. Its compact and customizable design makes it ideal for IoT devices, RF modules, smart meters, industrial automation systems, and telemetry applications.
