TX-FPC01

FPC Antenna

Antenna Type: Flexible Printed Circuit (FPC) Antenna
Frequency Range: 700–2700 MHz (Custom bands available)
Supported Bands: LTE, GSM, ISM, WiFi, Bluetooth, GPS (Depending on configuration)
Gain: 1–3 dBi (typical, band-dependent)
Polarization: Linear
Impedance: 50 Ω
VSWR: ≤ 2.0
Connector Type: IPEX / U.FL / MHF (Customizable)
Cable Type: 1.13 mm / 1.37 mm coaxial cable
Cable Length: Custom as per requirement
Material: Polyimide (Flexible FPC substrate)
Dimensions: Customizable (Typical: 40×10 mm or similar)
Mounting Method: Adhesive backing (3M high-bond tape)
Operating Temperature: –40°C to +85°C
Applications: IoT devices, modules, gateways, wearables, M2M, embedded systems, automotive electronics

Enquire Now

Download Specification

Descritption TX-FPC01

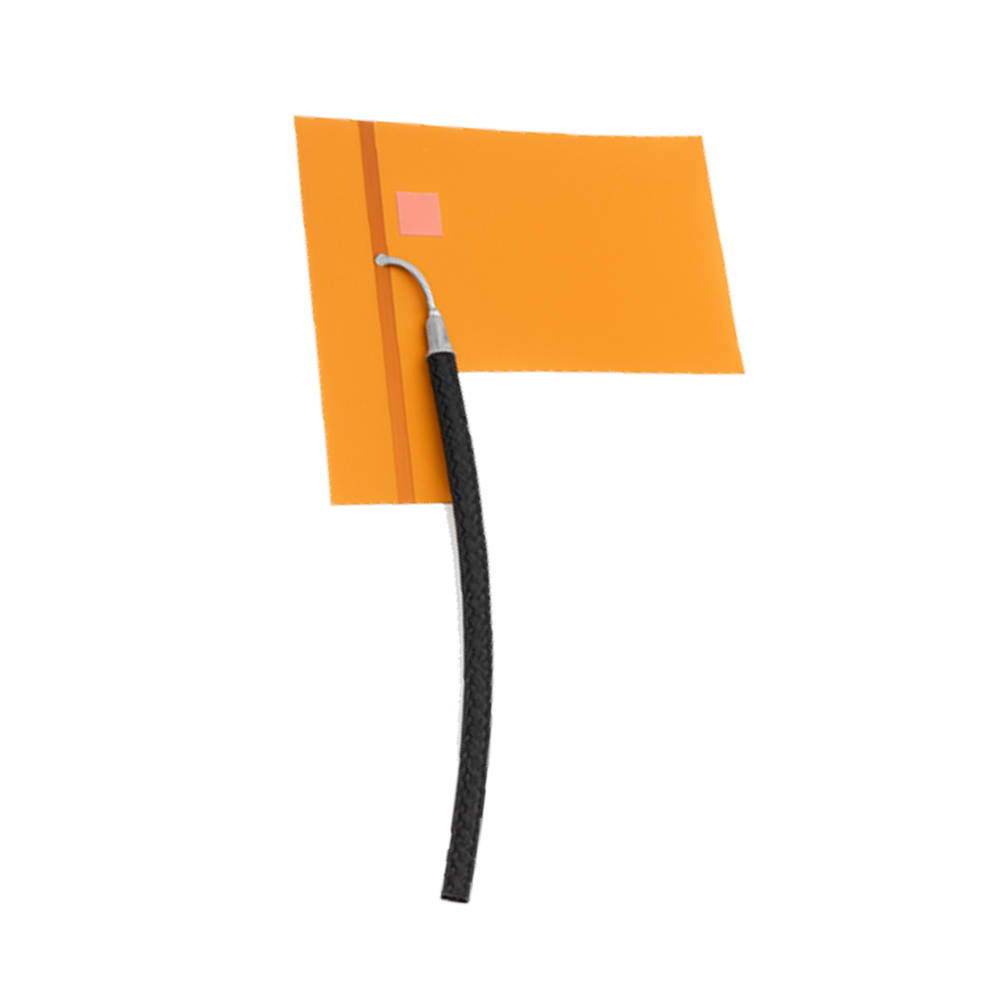

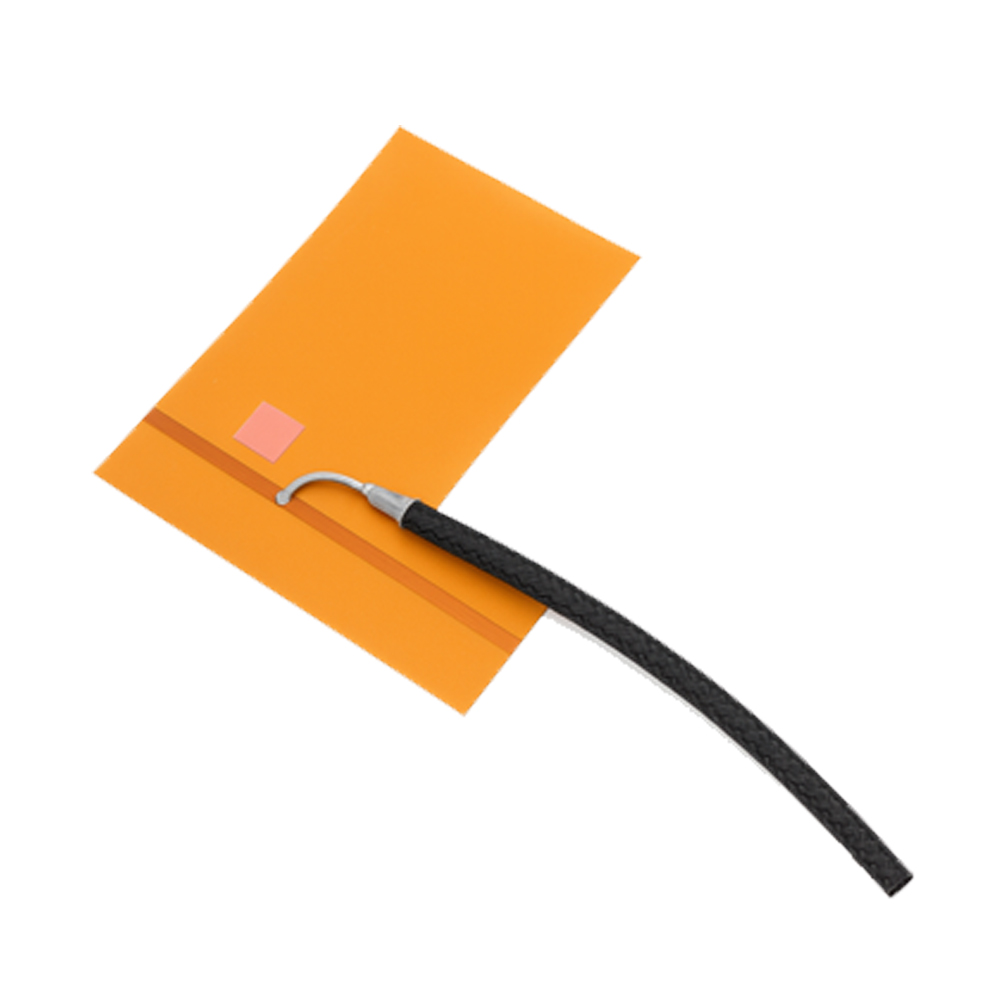

The TX-FPC01 is an ultra-thin, flexible FPC antenna designed for compact wireless devices requiring stable RF performance in limited space. Its lightweight construction, peel-and-stick installation, and wide frequency compatibility make it ideal for IoT modules, handheld devices, smart sensors, and embedded communication systems.
