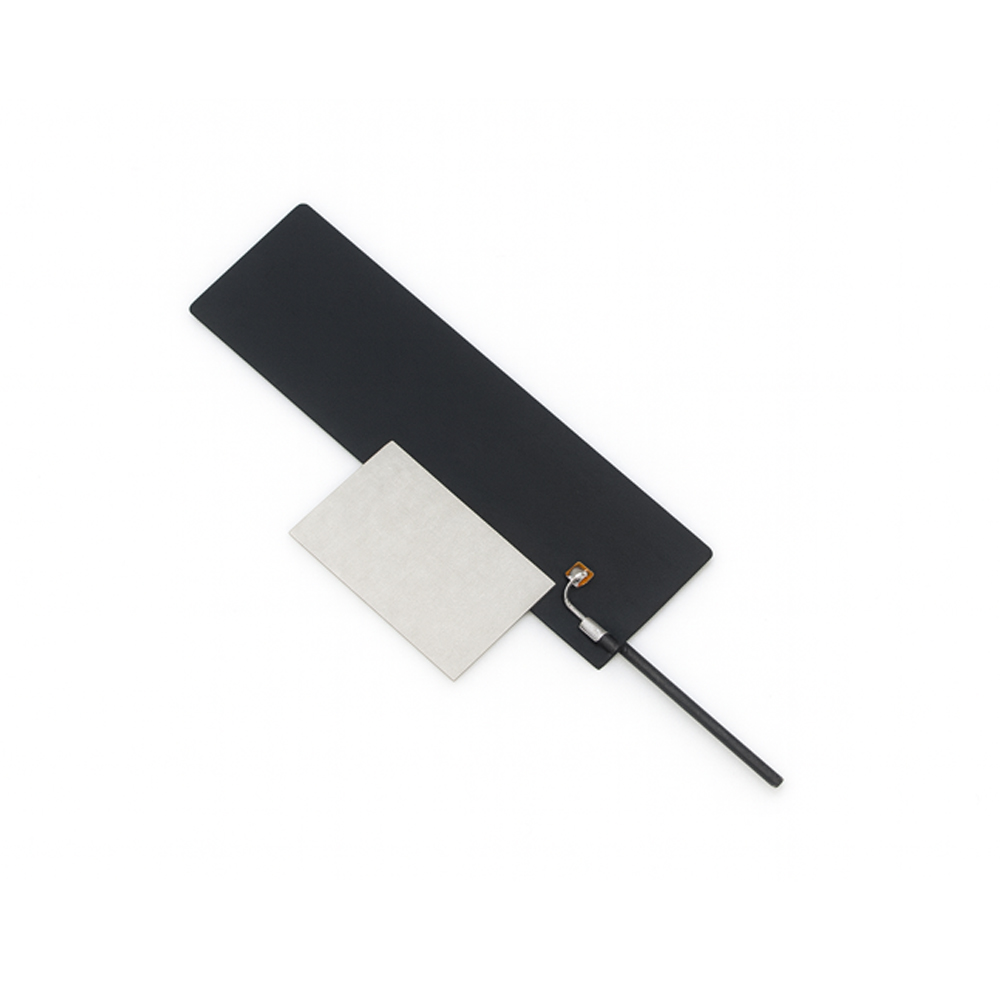

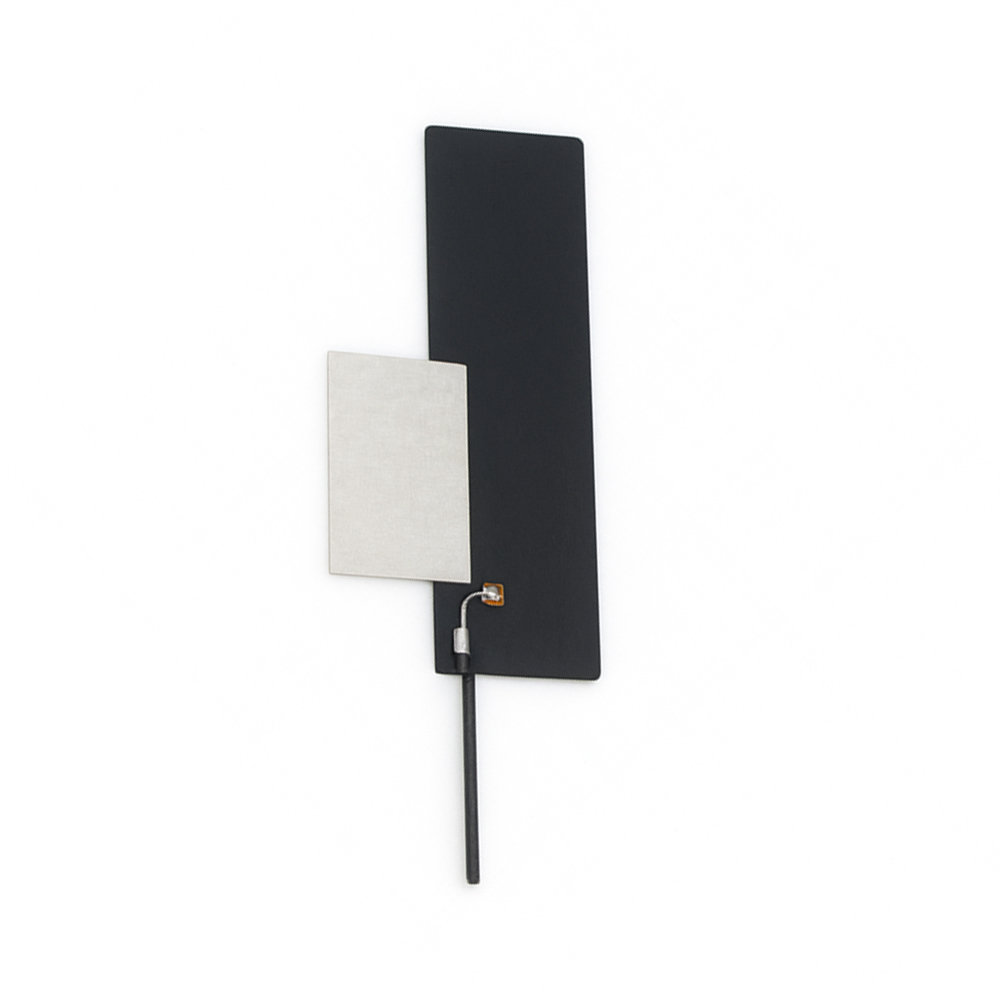

TX-FPC05

FPC Antenna

Antenna Type: Flexible Printed Circuit (FPC) Antenna
Frequency Range: 700–2700 MHz (supports multi-band operation)
Gain: 1.5–3 dBi (depending on band)
VSWR: ≤ 2.0 typical
Polarization: Linear
Cable Type: 1.13 mm coaxial cable
Cable Length: Customizable (standard: 100 mm)
Connector: IPEX / U.FL / MHF (custom options available)
Material: Polyimide flexible substrate
Operating Voltage: Passive (no power required)
Impedance: 50 Ω
Dimensions: Slim ultra-low-profile design (custom size available)
Mounting Method: Adhesive backing for easy installation
Operating Temperature: –40°C to +85°C
Applications: IoT devices, smart modules, GPS units, handheld terminals, small appliances, trackers, wearables

Enquire Now

Download Specification

Descritption TX-FPC05

The TX-FPC05 is an ultra-thin, flexible FPC antenna designed for compact wireless devices requiring stable RF performance in limited space. Engineered for IoT, handheld electronics, wearables, and embedded systems, it delivers reliable signal coverage with easy integration into plastic housings and PCBs.
