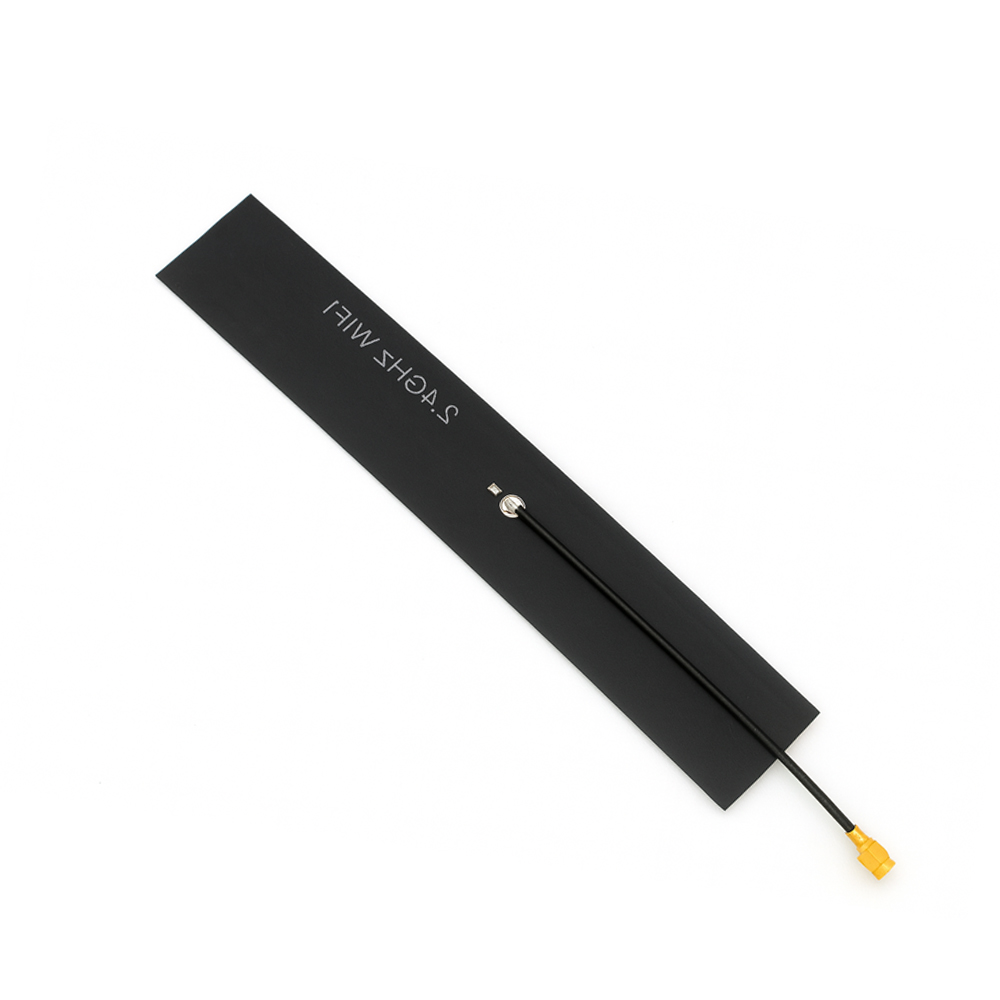

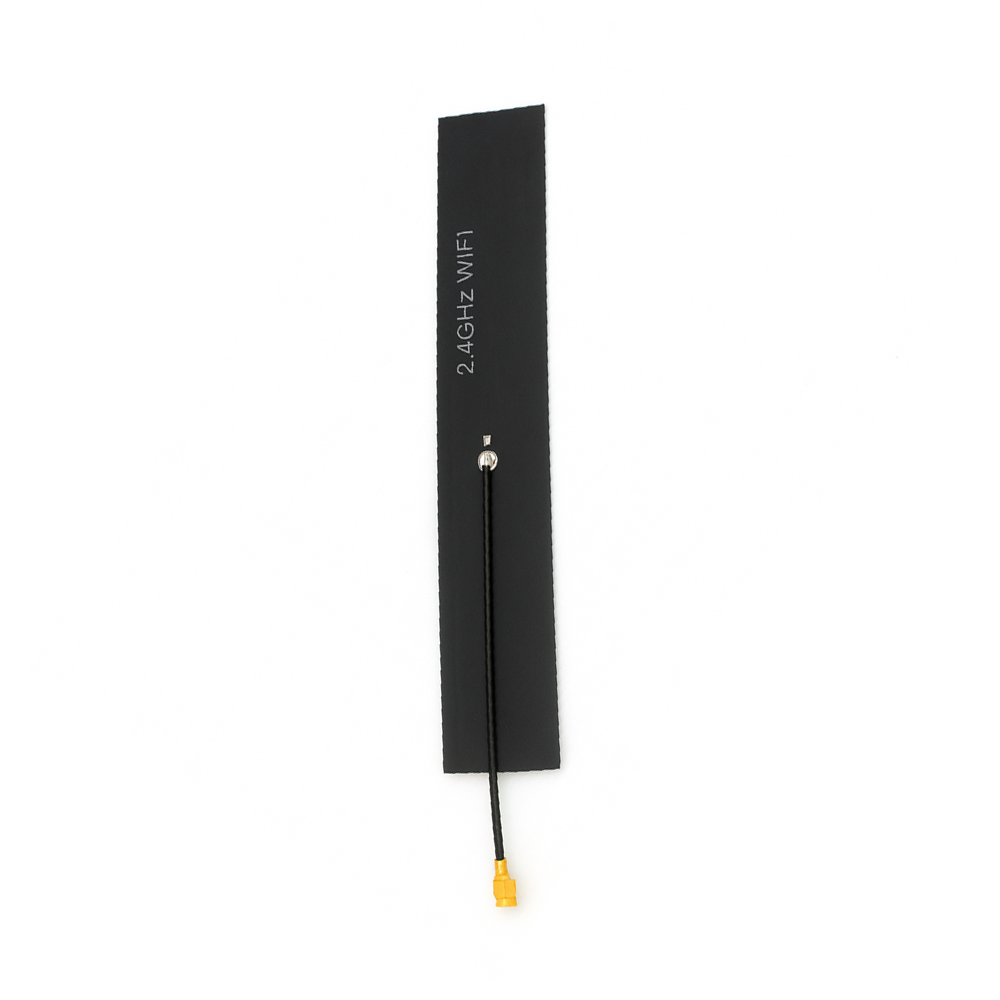

TX-FPC03

FPC Antenna

Antenna Type: Flexible Printed Circuit (FPC) Antenna
Frequency Range: 700–2700 MHz (supports GSM/LTE/WiFi/4G bands)
Gain: 2–5 dBi (band-dependent)
VSWR: ≤ 2.0
Polarization: Linear
Impedance: 50 Ω
Connector: IPEX/U.FL (customizable)
Cable Type: 1.13 mm coaxial (optional 1.37 mm)
Cable Length: 50–150 mm (custom lengths available)
Material: Flexible FPC substrate with adhesive backing
Dimensions: Compact ultra-thin patch (customizable)
Mounting: Peel-and-stick adhesive installation
Applications: IoT devices, GPS trackers, smart meters, wearables, industrial modules, embedded circuits

Enquire Now

Download Specification

Descritption TX-FPC03

The TX-FPC03 is an ultra-thin, flexible FPC antenna designed for compact RF devices requiring stable performance in constrained spaces. Ideal for IoT modules, routers, handheld devices, and embedded communication systems, it offers reliable signal strength with easy integration into plastic housings or PCB assemblies.
